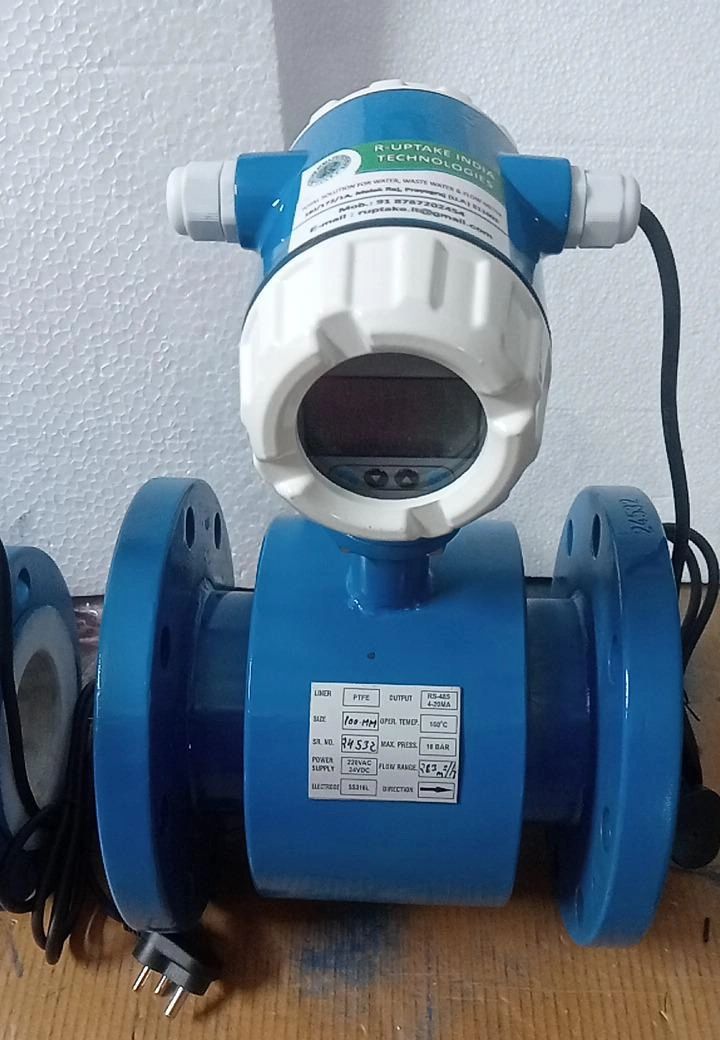

Electromagnetic Flow Meter

Electromagnetic Flow Meter

Technical Specifications: -

HSN: - 90261010

* Model: E-FLOW

* Line Size: 150 mm (6 inch)

* Display Type: Integral

* Version: Remote

* Media: Liquids (Conductive)

* Conductivity: > 5 μs/cm

* Viscosity: 200 cp max

* Excitation: Pulsed DC

* Type of Output: 1) 4 to 20 mA DC, Isolated2)RS485 MODBUS 3) Pulse

* Display: Graphics type

* Accuracy: +/- 0.5% of F. S. (for 20 to

100% flow)

* Linearity: +/- 0.5% of F. S.

* Repeatability: +/- 0.2% of F. S.

* Temperature Coefficient: +/- 0.05% per °C

* Process Temperature: 150°C for PTFE Lining

* Process Pressure: 15 kg/cm² max (higher on

request)

* Electrode Material: SS316L

* Flow Tube SS 304

* Lining Material: PTFE

* Flanges: MS, Class 150

* Coil Housing: MS/CS

* Transmitter Enclosure: Die Cast Aluminium

* Power Supply: 90 - 260 V AC, 50 Hz

* Response Time: < 1 Sec

* Operating Conditions: Temperature 0 to 55°C /

Humidity 5 to 95%

* Display Parameters: Instantaneous Flow Rate,

Totalized Flow and Diagnostic Messages

* 1 Year warranty

Quality First

We deliver exceptional results in everything we do, ensuring your satisfaction at every step.

Expert Care

Our experienced team brings skill and passion to every project, no matter the size.

Real Results

Proven outcomes that speak for themselves and make a meaningful difference for your business.

Electromagnetic Flow Meter with Telemetry System

Electromagnetic Flow Meter with Telemetry System

Technical Specifications: -

HSN: - 90261010

* Model: E-FLOW

* Line Size: 50 mm (2 inch)

* Version: Remote

* Media: Liquids (Conductive)

* Conductivity: > 5 μs/cm

* Viscosity: 200 cp max

* Excitation: Pulsed DC

* Type of Output: 1) 4 to 20 mA DC, Isolated

2)RS485 MODBUS

3) Pulse

* Display: Graphics type

* Accuracy: +/- 0.5% of F. S. (for 20 to

100% flow)

* Linearity: +/- 0.5% of F. S.

* Repeatability: +/- 0.2% of F. S.

* Temperature Coefficient: +/- 0.05% per °C

* Process Temperature: 150°C for PTFE Lining

* Process Pressure: 10 kg/cm² max (higher on

request)

* Electrode Material: SS316L

* Lining Material: PTFE

* Flanges: MS, Class 150

* Coil Housing: MS/CS

* Transmitter Enclosure: Die Cast Aluminium

* Power Supply: 90 - 260 V AC, 50 Hz

* Response Time: < 1 Sec

* Operating Conditions: Temperature 0 to 55°C /

Humidity 5 to 95%

* Display Parameters: Instantaneous Flow Rate,

Totalized Flow and Diagnostic Messages

* 1 Year warranty

Datalogger with Data Connectivity to Local Server for

1 year

Quality First

We deliver exceptional results in everything we do, ensuring your satisfaction at every step.

Expert Care

Our experienced team brings skill and passion to every project, no matter the size.

Real Results

Proven outcomes that speak for themselves and make a meaningful difference for your business.

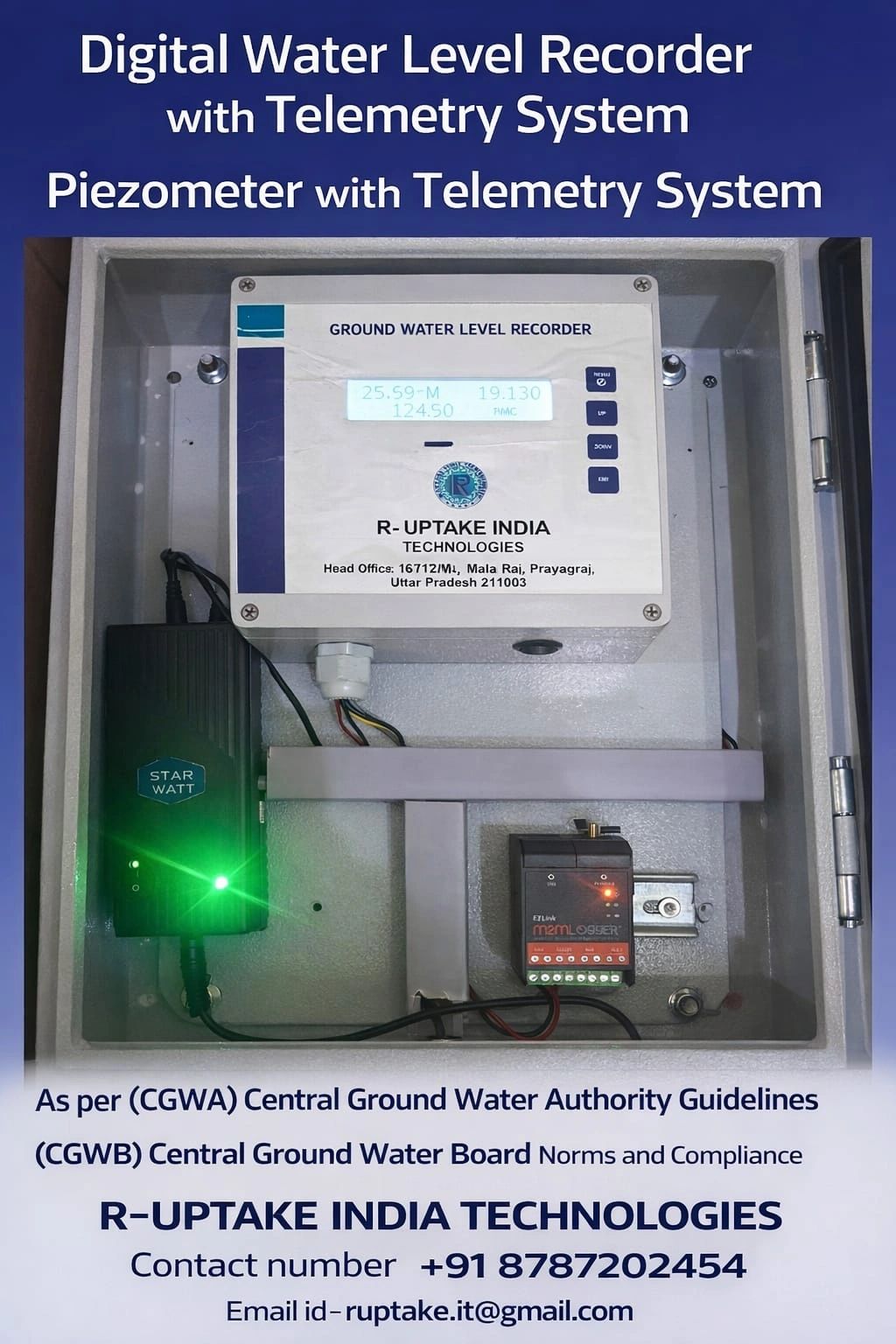

DWLR / Piezometer with Telemetry System

DWLR / Piezometer with Telemetry System

* Model: - DWLR-01

* Accuracy: 1 mm

* SENSOR Range: 0-500 MTR

* Cable Length: 50 meters

* Current consumption: 12V 5mA

* Battery Backup: 7 Day

* Wetted Material: SS316L

* Vibration: ±20g, MIL-STD-810C

* Display: 20×4 LCD display

* Enclosure: IP65 (Water Proof and Dust Proof) with stand

and feting angles

* Data Output: Microsoft Excel format

Clock: Real time internal clock Transmitter indicator

* Data Logging System Online Data Monitoring System With

4G Device

* Rtc: (Real Time Clock)

* Rtc: Setting

* Pen Drive Data Logger System – USB

* Internal Memory: Max 2lac Data save

* Data Format: in Excel (Date, Time, value)

* Receiver indicator with GSM / GPRS System (Telemetry)

* 4G device 5m Antenna

* Output: RS485

* Warranty 1 Year

* Data Connectivity to CGWA / Local Server 1 year

Quality First

We deliver exceptional results in everything we do, ensuring your satisfaction at every step.

Expert Care

Our experienced team brings skill and passion to every project, no matter the size.

Real Results

Proven outcomes that speak for themselves and make a meaningful difference for your business.

PTZ Camera with Data Connectivity To CPCB & SPCB

PTZ Camera

* Smart IR, up to 150m (492ft) IR distance

* Professional IP/Tilt/Zoom/ Speed Dome, Simple

Setup, IR-Cut up to 150m (492-fit) Night Vision.

2MP & 4MP high resolution, PALNTSC, ONVIF Support,

PTZ Speed: 90 degrees Vertical, 360 Degrees

Endless horizontal.

* Uniview 4 Channel NVR

* Hard disk 2 Tb Surveillance

* POE Switch 4 Port

* CAT 6 cable 100 Meter

* Connectors and Accessories with Outdoor Box

* Warranty 1year

Quality First

We deliver exceptional results in everything we do, ensuring your satisfaction at every step.

Expert Care

Our experienced team brings skill and passion to every project, no matter the size.

Real Results

Proven outcomes that speak for themselves and make a meaningful difference for your business.

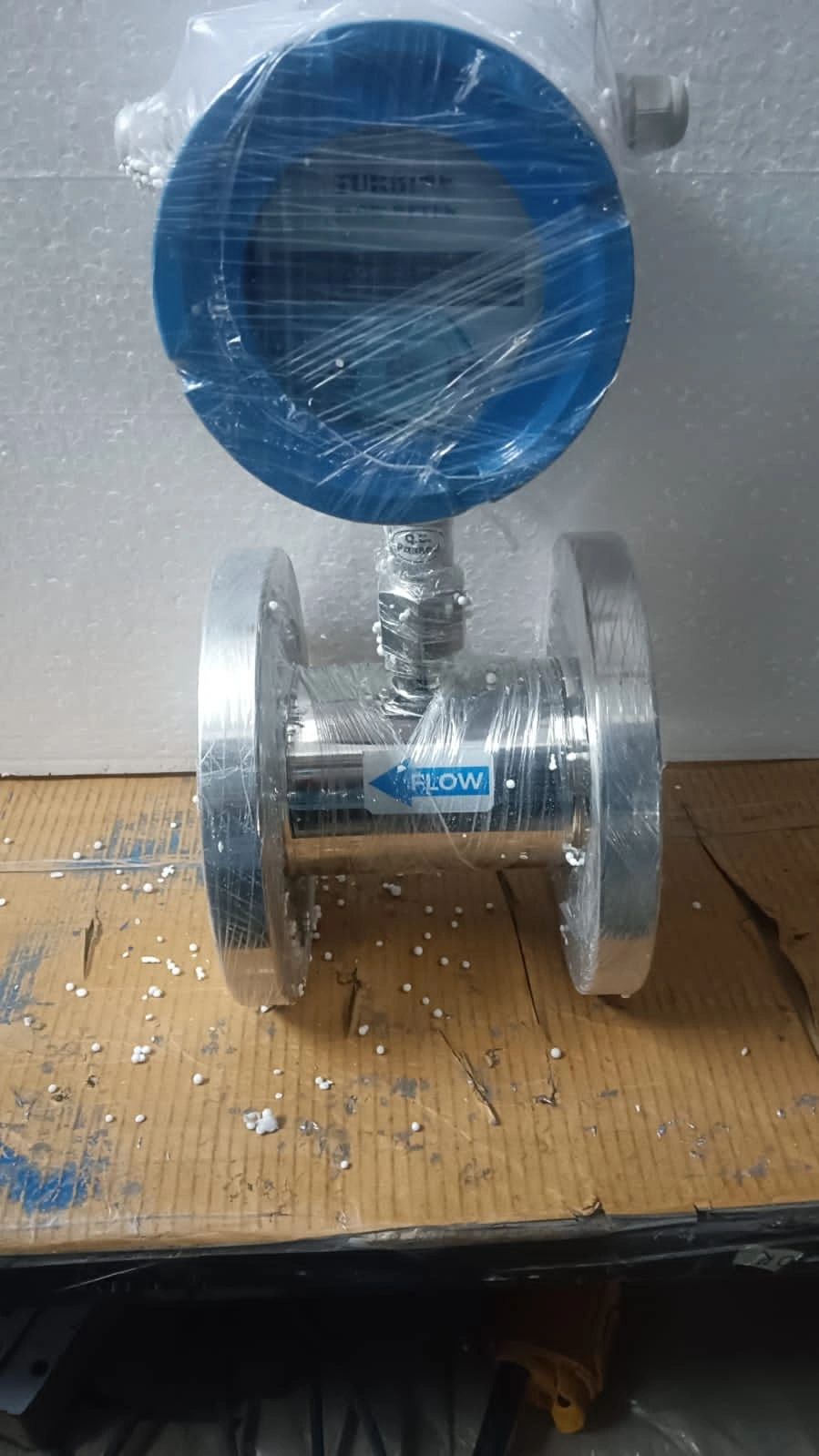

TURBINE FLOW METER

TURBINE FLOW METER

Technical Specifications: -

HSN: - 90261010

* Model: MD-TFM-22

* Line Size: 80mm (3" inch)

* Operational Pressure Max: 25 KG / cm².

* Operational Temperature: 150, Deg C

* MOC: SS304

* ROTTER: SS410

* Conductivity: NOT REQURED

* Process Connection: Flange ASI 150#

* Mountain: In Line Horizontal.

* Mounting Type: Integral Input

* Supply: 230 V AC./ 24V DC

* Display: 9 Character X 2 Line LED With Blue

Backlight

* Flow Rate: 4 Digits LED.

* Total Flow: 9 Digits LED.

* Enclosure: Flameproof Box

(4" Digi safe with 2 NOS ¾ "ET

Entries)

* Accuracy: +/-1%Of F.S.

* Output. Std: 4to20mA / RS485, Optional

* APLICATION: DM/RO Water & OIL

* Flow Range: 0-50m3/Hr

* 1 Year warranty

* Test & Calibration Certificate

* Guarantee certificate

Quality First

We deliver exceptional results in everything we do, ensuring your satisfaction at every step.

Expert Care

Our experienced team brings skill and passion to every project, no matter the size.

Real Results

Proven outcomes that speak for themselves and make a meaningful difference for your business.

Automatic Weather Monitoring System

Automatic Weather Monitoring System

Parameters:

* Rain Fall

* Wind speed

* Ambient Temperature

* Wind direction

* Relative Humidity

* Solar Radiation

* Barometric Pressure

Specification: -

* Micro controller-based system.

* Data Access through SD Card mode.

* 20 characters X 4 lines display.

* Weather proof enclosure-IP68.

* Real time clock provided.

* Logging interval 1 minute to 24 hours.

* Easy to use.

* 1 year warranty.

* Battery: 10 Ah Battery Backup: 1 week

* Tripod Stand

* 1. Real-time data updates.

* 2. Ability to export data with a minimum interval of

15Minutes.

* Power supply: 12V

* IP65 Grade enclosure

* Solar Panel

* Data connectivity to Local Server

Quality First

We deliver exceptional results in everything we do, ensuring your satisfaction at every step.

Expert Care

Our experienced team brings skill and passion to every project, no matter the size.

Real Results

Proven outcomes that speak for themselves and make a meaningful difference for your business.

Online Continuous Emission Monitoring System ➢ SPM Analyzer

Online Continuous Emission Monitoring System

➢ SPM Analyzer

Technical Specification –

Model: EZ320 PM

Measuring Principle: - Optical Opacity

➢ Shielded Cable (0.75 SQM X 4 Core)- 75 meter with

supply with IP 68 grade End Connectors, mating

flange, bolts, canopy

Any extra length will be charged @ Rs 150/- per mtr

➢ Measurement Range: - 0–1000 ug/Nm³

➢ Enclosure Rating: - IP65 – Dust-tight and protected

against strong water jets

➢ Output Signals: - RS-485 (Modbus RTU Protocol)

➢ Operating Wavelength: - 650nm

➢ Cleaning: - Oil & Moisture Free Air

➢ Power Consumption: - Up to 10 W (DC/AC)

➢ Ambient Temperature: - Standard model: –05 °C to

+55 °C

➢ Infrared Remote Controller + LCD Display

➢ In-situ measurement directly in exhaust gas flow.

➢ Modulated LED source for long time.

➢ Stability and immunity to ambient light.

➢ In-situ zero and calibration check facility.

➢ Auto drift and source check facility.

➢ Trigger alarm at set limit.

➢ Simple Installation.

➢ Better Accuracy.

➢ Rugged design with no moving parts so low

maintenance.

➢ Latched head and lid design to enable ease of

access for installation and maintenance.

➢ Power Supply: - 230 V AC ±10%, 50/60 Hz

➢ Warranty 1 year

➢ Certification: - NPL-INDIA & TUV

➢ IOT Device/ Datalogger with Data Connectivity to

CPCB & SPCB Charges for 1 year – IOT Device as per

CPCB Norms

➢ Design, Engineering, Manufacturing & Supply of

Analyzer and other Accessories as per the Bill of

Material.

Quality First

We deliver exceptional results in everything we do, ensuring your satisfaction at every step.

Expert Care

Our experienced team brings skill and passion to every project, no matter the size.

Real Results

Proven outcomes that speak for themselves and make a meaningful difference for your business.

Ambient Air Quality Monitoring System

Ambient Air Quality Monitoring System

* Model NO: AQMS-01

* Enclosure: 500x500

Parameters:

➢ Sox, ➢ Nox, ➢ PM10, ➢ PM2.5, ➢ O2, ➢ CO, ➢ CO2,

Working Principles: -

➢ Range: Sox: 0-1000 PPM (Electro-chemical)

➢ Range: Nox: 0-1000 PPM (Electro-chemical)

➢ Range: O2: 0-1000 PPM (Electro-chemical)

➢ Range: CO: 0-1000 PPM (Electro-chemical)

➢ Range: CO2: 0-1000 PPM (Electro-chemical)

➢ Range:PM10, :0-1000 PPM (Light scattering)

➢ Range: PM 2.5: 0-1000 PPM (Light scattering)

Specification:

* Measurement: Simultaneous for all Parameters. Accuracy:

+- 5% FS for all parameters Response Time: T90 < 30 sec

* Display: In-built Size: 7-inch Touch Display

* Recording Interval: Programmable with options of 1mint to

24 hours

* Local Server Connectivity

* Storage: Memory: 8 GB

* Weather Proof Housing: IP65

* Easy to use.

* 1 year warranty

Quality First

We deliver exceptional results in everything we do, ensuring your satisfaction at every step.

Expert Care

Our experienced team brings skill and passion to every project, no matter the size.

Real Results

Proven outcomes that speak for themselves and make a meaningful difference for your business.
